Touch Screen PCB Handling Equipment Printed Circuit Board Shuttle Conveyor

Name: Touch Screen PCB Handling Equipment Printed Circuit Board Shuttle Conveyor
Brand: Chimall
Price: 1 USD

Brand Name : Chimall

Model Number : SC-***A-CT

Certification : CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : T/T

Delivery Time : 25 days

Packaging Details : Seaworthy Vacuum Plywood Packing

Name : PCB Traverser

Application : This unit is used to transport boards from one line into two lines or vice versa

Traversing Lengthity : specified

Power Supply : AC 110/220V ±10V, 50/60HZ

Transfer Height : 920 ±50mm

Price : Negotiable

Contact Now

Touch Screen PCB Handling Equipment Printed Circuit Board Shuttle Conveyor

Application

The PCB Traverser is used for transporting boards from one line into two lines or vice versa. The orientation of the board is not changed during traversing.

Features

Controlled by Omron PLC and servo motor.
Easy operation by touch screen.
Width adjustment by hand crank.
By pass mode selectable.
Traversing length specified.
Configuration upon request.
Front and rear stop positions by touch screen setting.
SMEMA compliant.
CE certified.

Specifications

Model	SC-350A-CT	SC-460A-CT
Power Supply	AC 110/220V ±10V, 50/60HZ
Fixed Rail	Front
PCB Width	50 - 350mm	50 - 460mm
Traversing Length	specified
Transfer Height	920 ±50mm
PCB Direction	left to right or right to left (option)

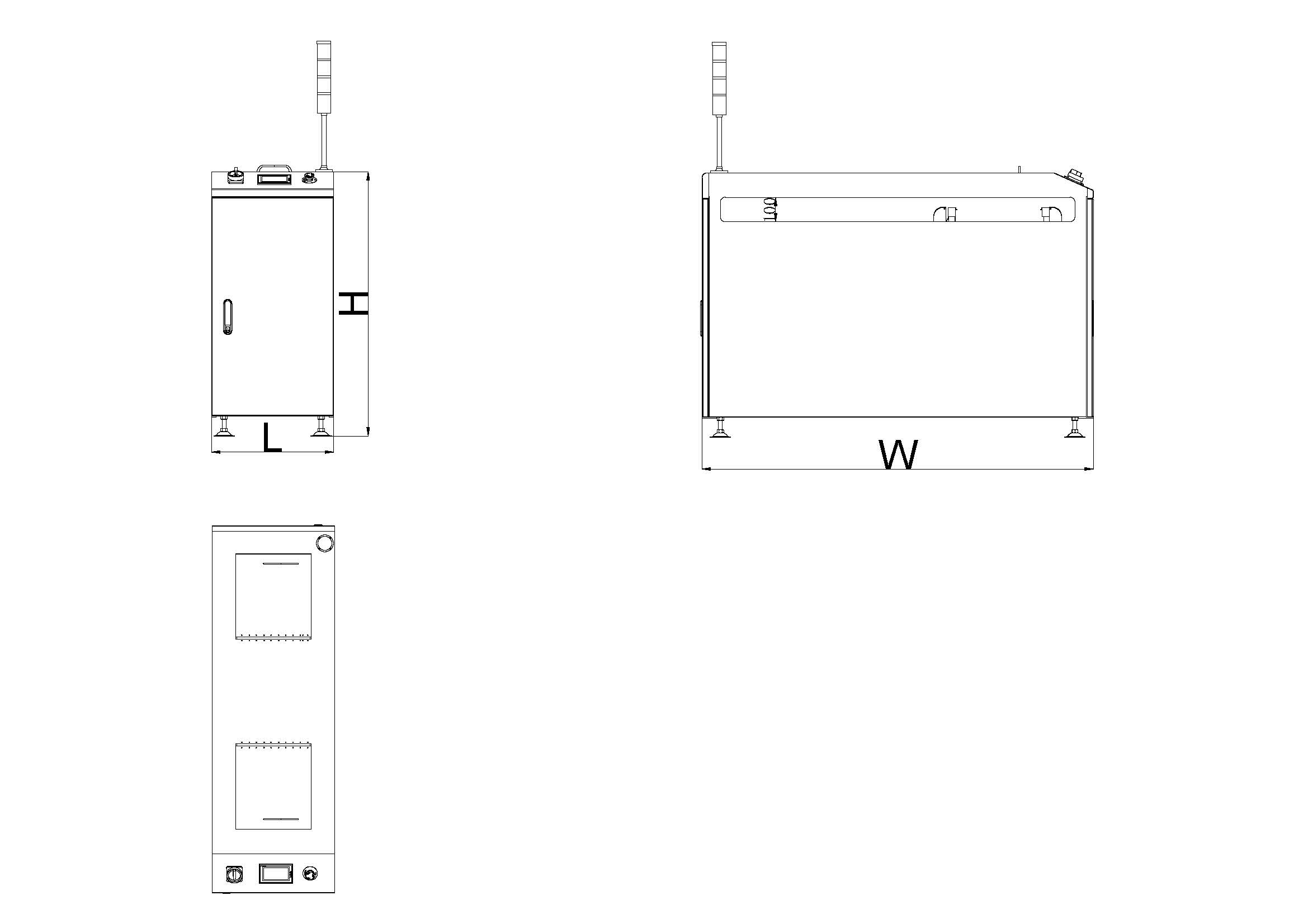

Machine Dimension	500W1100mm	550W1100mm
Machine Weight	Depends on traversing distance	Depends on traversing length

* Other options available on request.
